Aastra Dialog 4000 digital
telephones: 4220 Lite, 4222 Office, 4223
Professional, 4224 Operator & 4225 Vision
combine excellent sound quality and outstanding
features with superior ergonomics. Users also
benefit from built-in acoustic shock protection
and hearing-impaired support.
Environmentally sound
design has been a cornerstone in developing the
Dialog 4000. All phones support software
downloading for remote upgrades and easy
maintenance.
The Dialog 4000 generation
of telephones leads the way into the future for
enterprise communications. |
|
|
|
|
|
|
|
 |
|
Dialog 4220 Lite
This compact, cost-effective model offers all
basic functions for office communication needs. The Dialog 4220 Lite is
especially designed for users who want traditional telephone functions
with good voice quality. It is a robust convenient phone well-suited for
visitor or service areas. Like all other Dialog 4000 phones, it can be
wall-mounted and features a loudspeaker for voice monitoring.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Dialog 4222 Office
The Dialog 4222 Office is a
desktop telephone with full functionality for office communication
needs. It is userfriendly and equipped with a hands-free speaking
function as well as an integrated headset port and a dedicated headset
key. The telephone features a graphical two-row display for relevant
information such as the called or calling party’s extension number and
the time and date. With its “landing gear struts”, users can adjust the
phone to different lighting situations. Programmable keys enable fast
access to specific numbers or services. An extra key panel and an
optional unit for external equipment can be easily connected. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Dialog 4223 Professional
This multi-featured model supports advanced system
functions for professional office users. The Dialog 4223 Professional is
ideal for administrative workers and traditional call center (ACD)
agents. With its “landing gear struts” and a three-row, adjustable,
graphical display, users can adjust the phone for all environments and
lighting situations.
Using softkeys, users can easily access
the display menu with a number of system features such as a
phonebook, call list, diversion, absence reason, etc.
Programmable keys enable fast access to specific numbers or
services. A high quality, hands-free speaking function offering
full duplex and Acoustic Echo Canceling (AEC) makes this phone
well-suited for telephone meetings. A headset can be connected
directly to the integrated headset port. Toggling between the
handset and headset is controlled by a dedicated key.
Additionally, up to four extra key panels and an optional unit
for external equipment can be easily connected. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|

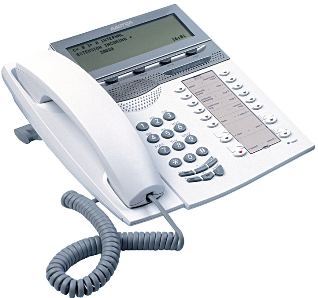

Dialog 4224 Operator
The Dialog 4224 Operator terminal is a compact and
cost-effective alternative for smaller organizations, such as
departments or small remote offices. The terminal is the same size as
the Dialog 4225 digital telephone with a large, six-row graphical
backlit display and a conventional numeric keypad. The keys that are
most frequently used have been enlarged. Such ergonomic design combined
with advanced operator functionality and ease-of-use, makes this
terminal the perfect choice for the small office. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Dialog 4225 Vision
This multi-featured, top-of-the-line model
supports advanced system functions. The Dialog 4225 Vision is ideal for
demanding and executive office usage. Compared to the Dialog 4223, this
telephone features 10 extra programmable keys and a large, six-row,
backlit graphical display with three navigation keys and four softkeys.
Using the navigation keys in combination with softkeys, users can easily
access a display menu with a number of system features such as a
phonebook, call list, diversion, absence reason, etc.
An extra high
quality hands-free speaking function offering full duplex and Acoustic
Echo Canceling (AEC) makes this phone very well-suited for telephone
meetings, as well as for conference calls in small meeting rooms.
A
headset can be connected directly to the integrated headset port.
Toggling between the handset and headset is controlled by a dedicated
key. Additionally, up to four extra key panels and an optional unit for
external equipment can be easily connected.. |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
